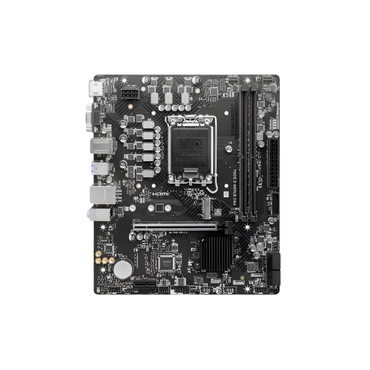

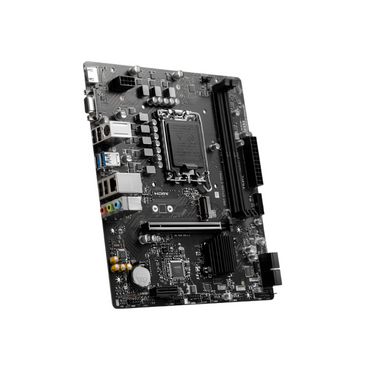

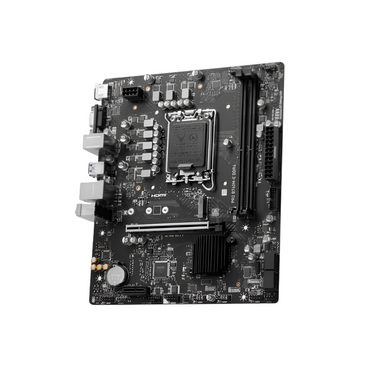

Intel B760

 Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS    1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT    1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
STORAGE    1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB    4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN    Realtek® RTL8111H Gigabit LAN
AUDIO    Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL IO    1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
LED FEATURE    4x EZ Debug LED
BACK PANEL PORTS
HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0

OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO    mATX
200mmx236.16mm
